Airtac Double-head 3v320-06 0.15~0.8MPa 3/2way Solenoid valve
| Price: |
2.5~2.9 USD |
| Payment Terms: |
T/T,WU;Paypal |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
3V320-08 3V320-10
Production Capacity:
10000 pcs per 20 days
Delivery Date:
within 3 working days after...
Standard or Nonstandard:
Standard
Structure:
Pilot
Temperature of Media:
Normal Temperature
Brand Name:
Airtac SMC ASCO
Lubrication:
Not required
Orifice size:
30.0mm2
Fluid:
Air
Means of Transport:
Ocean,Land,Air
Packing:
Nylon bag, boxes,cartons
Power:
Pneumatic
Pressure:
Low Pressure
Material:
Alloy
Media:
Gas
Valve type:
3 port 2 position
Temperature °C:
-20~70
Material of body:
Aluminum alloy
Power consumption AC: 3.5VA DC : 3.0W
Scope of voltage: AC: ±15% DC: ±10%
Protection :IP65 ( DIN40050 )
Activating time:0.05 sec and below
Production Name:

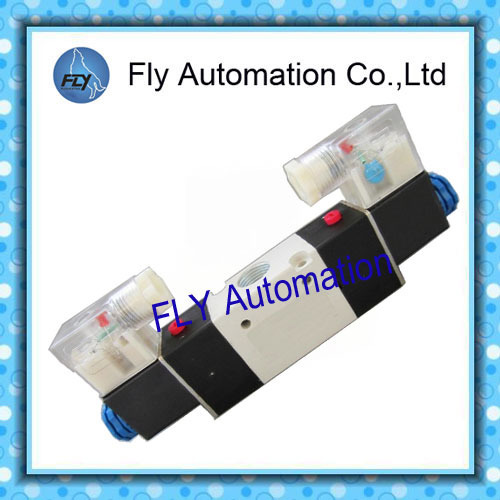

Double-head 3/8" Aluminum alloy 3V320-10 3/2waySolenoid valve
Specification:
| Model | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-10 |
| Fluid | Air(to be filltered by 40 mm fillter element) |
| Acting | Piloted |
| Port size | ln=Out=1/4" | ln=Out=3/8" |
| Orifice size | 25.0mm2(Cv=1.39) | 30.0mm2(Cv=1.67) |
| Valve type | 3 port 2 position |
| Lubrication | Not required |
| Operating pressure | 0.15~0.8MPa(21~114psi) |
| Proof pressure | 1.5MPa(215psi) |
| Temperature℃ | -20~70 |
| Material of body | Aluminum alloy |
Terminal series:
Grommetseries:
Coil Specification:
| Item | Specitification |
| Standard voltage | AC220V,AC110V,AC24V,DC24V, DC12V |
| Scope of voltage | AC: ±15% DC: ±10% |
| Power consumption | AC:3.5VA DC:3.0W |
| Protection | IP65(DIN40050) |
| Temperature classification | B Class |
| Electrical entry | Terminal,Grommet |
| Activating time | 0.05sec and below |
| Max.frequency | 5cycle/sec |
Inner structure:
| No. | Item | No. | Item | NO. | Item |
| 1 | Fixed plate | 8 | O-ring | 15 | Piston |
| 2 | Manual override | 9 | Body | 16 | Pilot screw |
| 3 | Override spring | 10 | Spool spring | 17 | O-ring |
| 4 | Piston O-ring | 11 | Bottom cover gasket | 18 | Armature |
| 5 | Pilot body | 12 | Bottom cover | 19 | Coil |
| 6 | Spool packing | 13 | Screw | 20 | Coil net |
| 7 | Spool | 14 | Wear ring | 21 | Connector |
Flow chart:
