0.15~0.8MPa Airtac 3V220-06 3V220-08 AC220V Solenoid valve
| Price: |
2.5~2.9 USD |
| Payment Terms: |
T/T,WU;Paypal |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
3V220-06 3V220-08
Production Capacity:
10000 pcs per 20 days
Delivery Date:
within 3 working days after...
Standard or Nonstandard:
Standard
Structure:
Pilot
Temperature of Media:
Normal Temperature
Brand Name:
Airtac SMC ASCO
Lubrication:
Not required
Orifice size:
16.0mm2
Fluid:
Air
Means of Transport:
Ocean,Land,Air
Packing:
Nylon bag, boxes,cartons
Power:
Pneumatic
Pressure:
Low Pressure
Material:
Alloy
Media:
Gas
Valve type:
3 port 2 position
Temperature °C:
-20~70
Material of body:
Aluminum alloy
Power consumption AC: 3.5VA DC : 3.0W
Scope of voltage: AC: ±15% DC: ±10%
Protection :IP65 ( DIN40050 )
Activating time:0.05 sec and below
Production name:

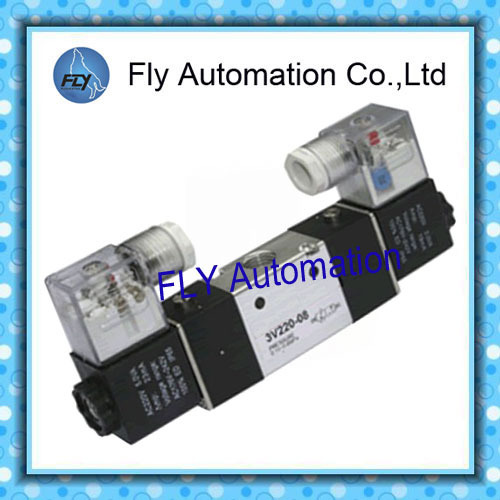

16.0mm2 AC220V 3V220-08 Double-head 3/2way Solenoid valve
Specification:
| Model | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| Fluid | Air (to be filltered by 40m m fillter element) |
| Acting | Piloted |
| Port size | ln=Out=1/8" | ln=Out=1/4" |
| Orifice size | 14.0mm2(Cv=0.78) | 16.0mm2(Cv=0.89) |
| Valve type | 3 port 2 position |
| Lubrication | Not required |
| Operating pressure | 0.15~0.8MPa(21-114psi) |
| Proof pressure | 1.5MPa(215psi) |
| Temperature ℃ | -20~ 70 |
| Material of body | Aluminum alloy |
Terminal series:
Grommet series:
Coil specification:
| Item | Specification |
| Standard voltage | AC220V,AC110V, AC24V, DC24V, DC12V |
| Scope of voltage | AC: ±15% DC: ±10% |
| Power consumption | AC:3.5VADC:3.0W |
| Protection | IP65(DIN40050) |
| Temperature classification | B Class |
| Electrical entry | Terminal,Grommet |
| Activating time | 0.05sec and below |
| Max.frequency | 5cycle/sec |
