ASCO dust collect valve
| Price: |
25.0~35.0 USD |
| Payment Terms: |
T/T,WU;Paypal |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
G353A049
Production Capacity:
1000 units per week
Delivery Date:
within 1-15 working days af...
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Temperature of Media:
Normal Temperature
Brand Name:
ASCO or OEM
Means of Transport:
Ocean,Land,Air
Packing:
Plastic bags,Boxes, Cartons...
Power:
Pneumatic
Pressure:
Low Pressure
Material:
Casting
Media:
Gas
Body: Aluminum
Flow coefficient KV: 92 m3/h 1540 L/min
Working pressure: 0.35-0.85Mpa
Product Name:

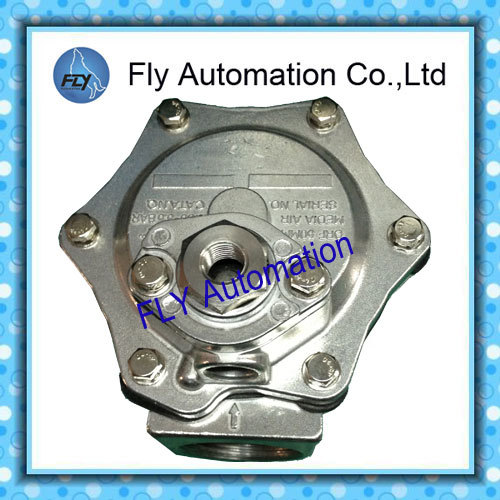

G353A049 2 1/2" ASCO Remote control dust collect valve
FEATURES
•
The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow,long life and extremely fast opening and closing to provide reliable and economical operation
•
The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
•Integral compression fittings for fast, easy, secure installation
•
Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
Specifications:
| pipe size | orifice size | flow coefficient Kv | operating pressure differential (bar) | catalogue number | OPTION FPM |
| mln. | max. (PS) |
| air |
| (mm) | (m3/h) | (l/min) | -/= | standard | ATEX II2G/D |
| G - Threaded pipe connection |
| 1 1/2 | 52 | 46 | 768 | 0,35 | 8,5 | G353A046 | G353A046 GD | V |
| 2 | 66 | 77 | 1290 | 0,35 | 8,5 | G353A048 | G353A048 GD | V |
| 2 1/2 | 66 | 92 | 1540 | 0,35 | 8,5 | G353A049 | G353A049 GD | V |
| 3 | 76 | 170 | 2833 | 1,0 | 6,0 | G353-058 | G353-058 GD | V |
Body: Aluminum
Spring: Stainless Steel
Diaphragm: TPE(thermoplastic polyester elastomer) or CR(chloroprene)
Temperature range:-40-85℃
| catalogue number | A | B | C | D | E | F | G | H | weight |
| G353A046 (GD) | 30 | G | 1/8" | 71 | 130 | 136 | G3/8" | 90 | 120 | 1,10 |
| G353A048 (GD) | 30 | G | 1/4" | 95 | 168 | 165 | G3/4" | 121 | 166 | 2,60 |
| G353A049 (GD) | 30 | G | 1/4" | 95 | 168 | 165 | G3/4" | 121 | 166 | 2,30 |
| G353-058 (GD) | 48 | G | 1/4" | 143 | 240 | 192 | G1/2" | 121 | 214 | 3,70 |
| G353A063 (GD) | 30 | G | 1/8" | 87 | 177 | 136 | G3/8" | 96 | 183 | 1,43 |
