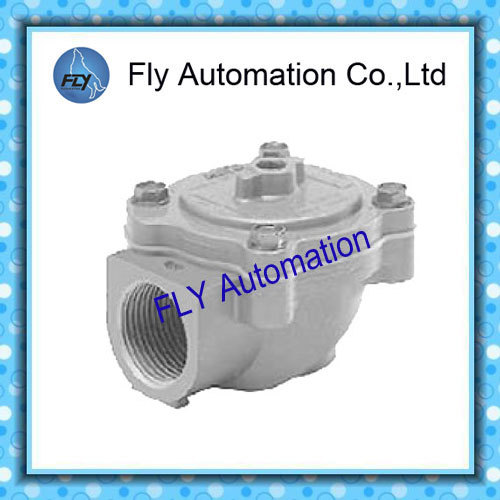

G353A042 TPE ASCO Remote control Air Impulse Valve
| Price: |
8.0~12.0 USD |
| Payment Terms: |
T/T,WU |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
G353A042
Production Capacity:
1000 units per week
Delivery Date:
within 1-15 working days af...
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Temperature of Media:
Normal Temperature
Brand Name:
ASCO or OEM
Means of Transport:
Ocean,Land,Air
Packing:
Plastic bags,Boxes, Cartons...
Power:
Pneumatic
Pressure:
Low Pressure
Material:
Casting
Media:
Gas
Fluids: Compressed Air
Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range -40/-20 to +85°C (TPE/CR)
Product Name:
G353A042 1" TPE Diaphragm ASCO Remote control Air Impulse valve
Fluids Air
Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range -40/-20 to +85°C (TPE/CR)
FEATURES
•
The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow,long life and extremely fast opening and closing to provide reliable and economical operation
•
The high flow, angle type bodies in combination with the special main
diaphragm assemblies give the unique operating features required for dust collector service applications
•
Integral compression fittings for fast, easy, secure installation
•
Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
Specifications:
| pipe size | remote pilot connection | orifice size | flow coefficient Kv | operating pressure differential (bar) | catalogue number | option FPM |
| min. | max. (PS) |
| air |
| G | 0B | (mm) | | | | standard | ATEX II2G/D |
| G - Threaded pipe connection |
| 3/4 | 1/8 | 24 | 14 | 233 | 0,35 | 8,5 | G353A041 | G353A041 GD | V |
| 1 | 1/8 | 27 | 17 | 283 | 0,35 | 8,5 | G353A042 | G353A042 GD | V |
| 1 1/2 | 1/4 | 52 | 46 | 768 | 0,35 | 8,5 | G353A045 | G353A045 GD | V |
| 0 - Compression fitting pipe connection |
| 3/4 | 1/8 | 24 | 14 | 233 | 0,35 | 8,5 | G353-055 | G353-055 GD | V |
| 1 | 1/8 | 27 | 17 | 283 | 0,35 | 8,5 | G353-056 | G353-056 GD | V |
| 1 1/2 | 1/4 | 52 | 43 | 717 | 0,35 | 8,5 | G353-066 | G353-066 GD | V |
| catalogue number | A | B | C | D | E | F | G | weight |
| G353A041 (GD) | - | G 1/8" | 51 | 89 | 75 | 41 | 64 | 0,45 |
| G353A042 (GD) | - | G 1/8" | 51 | 89 | 75 | 41 | 64 | 0,40 |
| G353A045 (GD) | 30 | G 1/4" | 71 | 130 | 136 | 71 | 98 | 1,00 |
| G353-055 (GD) | - | G 1/8" | 88 | 125 | 75 | 47 | 109 | 0,58 |
| G353-056 (GD) | - | G 1/8" | 88 | 125 | 75 | 47 | 129 | 0,61 |
| G353-066 (GD) | 30 | G 1/4" | 117 | 177 | 136 | 73 | 161 | 1,33 |
