SMC 5/2way 0.15~ 0.8Mpa Inner Guide Type VF5120 Solenoid Valve from China manufacturer

Product Detail

Model No.: VF5120

Production Capacity: 10000 pcs per 2 weeks

Delivery Date: within seven working days a...

Standard or Nonstandard: Standard

Structure: Pilot

Temperature of Media: Normal Temperature

Brand Name: SMC FLY OEM

Temperature °C: 5~50℃

Orifice size: 16mm2

Valve type: 5 port 2 position

Means of Transport: Ocean,Land,Air

Packing: Nylon bag, boxes,cartons

Power: Pneumatic

Pressure: Low Pressure

Material: Alloy

Media: Gas

Lubrication: Not required

Fluid: Air

Material of body: Aluminum alloy

Power consumption AC: 4.5VA DC : 3W
Scope of voltage: AC: ±15% DC: ±10%
Long life cycle
ISO/CE Certification
Products can be returned or exchange

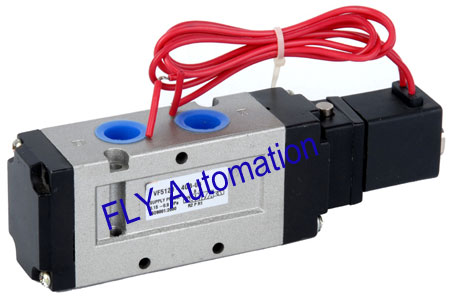

Production Name:SMC 5/2way Aluminum alloy Standard VF5120 Solenoid Valve

Specification:

Model	VF5120	VF5220	VF53(4/5)50
Position and Way NO.	Two-position Five-way		Three-positionFive-way
Effective Section Area	25mm²(CV=1.40)		18mm²(CV=1.00)
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~ 0.8Mpa
Max.Pressure Resistance	1.2Mpa
Operating Temperature	5~50℃
Voltage Range	±10%
Power consumption	AC:4.5VA DC:3W
Insulation& Production Class	F class:IP65
wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle/Sec
Shortest Excitation Time	0.05 Second
