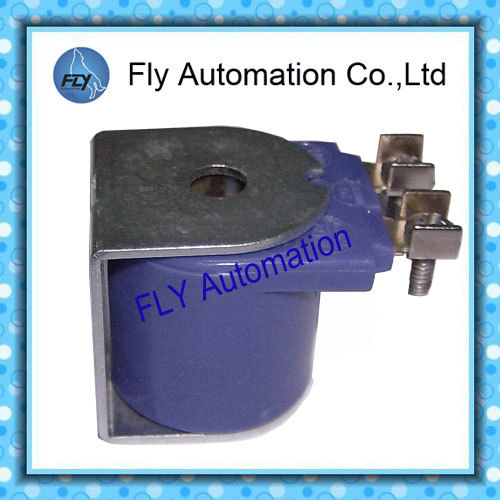

Product Name: GOYEN QT2 type Screw spade Solenoid coil K331
Suitable for:
All integrally piloted dust collector diaphragm valves, RCA3D
series pilot valves and pilot valve enclosures, and 3DS pilot valves.
Installation:
Slide solenoid over ferrule tube. Ensure terminals are on top. For QT
and QF type solenoids ensure nylon washer is in place. Slide clip onto
pilot iron top. Ensure voltage supplied to solenoid is within 10% and
+15% of the solenoid rated voltage.
Construction:
Encapsulation: PA 6 C-frame: Mild steel zinc passivated Bobbin: PA 6
Insulation class: B/130°C Rating: Non continuous use only Clip: Mild
steel (mechanically plated)
Operation:
Recommended on time range: 50-500ms Recommended time between pulses: 1
minute or greater
Code: K330 Voltage:200/240V 50/60Hz Power:23.1VA
Code: K331 Voltage:100/120V 50/60Hz Power:19.8VA
Code: K332 Voltage:24V 50/60Hz Power:23.1VA
Code: K333 Voltage:240V DC Power:24W
Code: K334 Voltage:110V DC Power:24W
Code: K335 Voltage:48V DC Power:20W
Code: K336 Voltage:24V DC Power:20W
Code: K337 Voltage:12V DC Power:20W
Connection type: Screw/Spade
Color: Purple
Dimension:(mm)
.jpg)
.jpg)
.jpg)
.jpg)
