Stainless Solenoid Valve SUS-15
| Price: |
26.0~32.0 USD |
| Payment Terms: |
T/T,WU |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
SUS-15
Production Capacity:
100 pcs per week
Delivery Date:
within 5 working days after...
Standard or Nonstandard:
Standard
Structure:
Control
Temperature of Media:
High Temperature
Brand Name:
Unid CKD Airtac
Means of Transport:
Ocean,Land,Air
Packing:
plastic bag, boxes, cartons
Power:
Pneumatic
Pressure:
Medium Pressure
Material:
Stainless Steel
Media:
Gas
1. Material: SS316
2.In spercial case, SUS series can made 20 Bar, 30 Bar, 40 Bar, please state the fluid preesure range when you order.
Product Name:

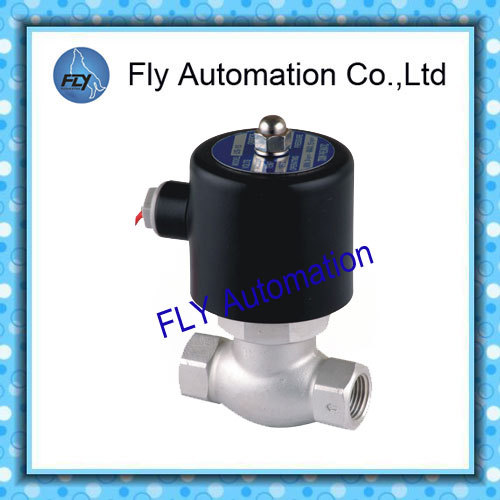

1/2" Thread 2 way Stainless steel Solenoid valve SUS-15
Features:
1.
Multiplex drive, piston guide,conductive normally closed.
3.Standard voltage : 24VDC,110VAC, 220VAC
AC Voltage tolerance: ± 10% ,
DC Voltage tolerance:±1%.
4.Other special AC/DC can be made to client's order.
5.Thread: BSPT, NPT , BSP.
6.The starndard fluid temperature is 185°C(PTFE).
7.
DIN43650A connector Coil is interchangeable
8. In spercial case, SUS series can made 20 Bar, 30 Bar, 40 Bar, please state the fluid preesure range when you order.
Materials:
| PARTS | MATERIAL |
| Body | Stainless steel |
| Coil | Special Copper Wire (H) |
| Core | Stainless Steel |
| Tube | Stainless Steel |
| Spring | Stainless Steel |
| Plug | PTF+15% GF |
| Piston | Brass |
Drawing:
Specification and Dimensions:
| MODEL | PIPE SIZE | Cv | ORIFICE(mm) | FLUID TEMPERATURE | OPERATING PRESSURE RANGE(Bar) | DIMENSION(mm) | WEIGHT |
| | | | | | WATER | AIR | Heavy OIL | Steam | L | H | D | KG |
| SUS-10 | 3/8" | 4 | 17mm | -5 - 185 ℃ | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 | 82 | 120 | 58 | 1.8 |
| SUS-15 | 1/2" | 4 | 17mm | -5 - 185 ℃ | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 | 82 | 120 | 58 | 1.7 |
| SUS-20 | 3/4" | 6 | 17mm | -5 - 185 ℃ | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 | 82 | 123 | 58 | 1.7 |
| SUS-25 | 1" | 12 | 22mm | -5 - 185 ℃ | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 | 91 | 130 | 58 | 2.0 |
| SUS-35 | 1 1/4" | 18 | 30mm | -5 - 185 ℃ | 1- 10 | 1- 10 | 1- 10 | 1- 10 | 110 | 141 | 58 | 3.1 |
| SUS-40 | 1 1/2" | 22 | 30mm | -5 - 185 ℃ | 1- 10 | 1- 10 | 1- 10 | 1- 10 | 110 | 144 | 58 | 3.3 |
| SUS-50 | 2" | 48 | 50mm | -5 - 185 ℃ | 1- 10 | 1- 10 | 1- 10 | 1- 10 | 163 | 173 | 58 | 7.2 |
