Product Name:

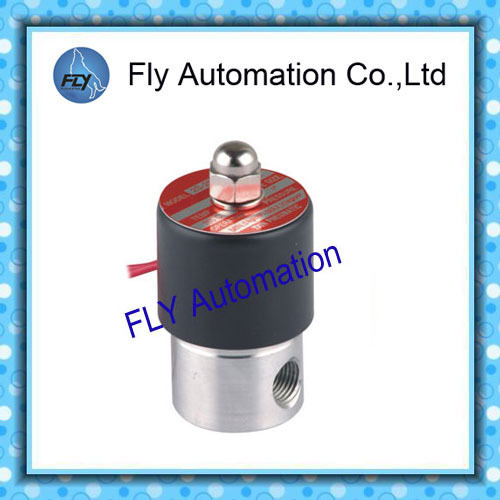

2S025-08 2 Way Stainless steel 1/4" Water solenoid valve
Features:
1.
Direct-Acting, conductive, normally closed.
3.Can be operated directly without pressure.
4.Small size and easy assembly.
5.Standard voltage : 24VDC,110VAC, 220VAC AC Voltage tolerance: ± 10% ,
DC Voltage tolerance:±1%.
6.Other special AC/DC can be made to client's order.
7.Thread: BSPT, NPT , BSP.
8.The standard product fluid temperature is 80°C(NBR).
9.Temperature:Viton(130°C), Silicon(130°C), PTFE(185°C).
10.
DIN43650A connector Coil is interchangeable
Materials:
| PARTS | MATERIAL |
| Body | SS316 CF8M |
| Coil | Special Copper Wire (H) |
| Core | Stainless Steel |
| Tube | Stainless Steel |
| Spring | Stainless Steel |
| Plug | NBR.Viton .Silicon, PTFE |
| Washer | NBR , PTFE |
Drawing:
Specification and Dimensions:
| MODEL | PIPE SIZE | Cv | ORIFICE(mm) | FLUID TEMPERATURE | OPERATING PRESSURE RANGE (Bar) | DIMENSION(mm) | WEIGHT |
| | | | | | WATER | AIR | Steam | L | H | D | KG |
| 2S025-06 | 1/8" | 0.23 | 2.5mm | -5 - 185 ℃ | 0-7 | 0-7 | 0-7 | 41 | 63 | 21 | 0.35 |
| 2S025-08 | 1/4" | 0.23 | 2.5mm | -5 - 185 ℃ | 0-7 | 0-7 | 0-7 | 41 | 63 | 21 | 0.33 |
| 2S040-10 | 3/8" | 0.58 | 4mm | -5 - 185 ℃ | 0-10 | 0-10 | 0-10 | 53 | 75 | 48 | 0.68 |
