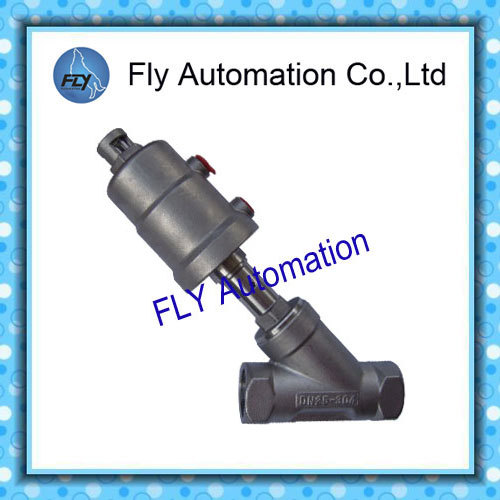

Flange connection Angle seat valve
| Price: |
32.0~42.0 USD |
| Payment Terms: |
T/T,WU |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
ASV-25S
Production Capacity:
500 pcs per week
Delivery Date:
within 10 working days afte...
Standard or Nonstandard:
Standard
Structure:
Angle
Temperature of Media:
Normal Temperature
Brand Name:
Burkert or OEM
Means of Transport:
Ocean,Land,Air
Packing:
bubble chamber film,box,car...
Power:
Pneumatic
Pressure:
Low Pressure
Material:
Stainless Steel
Media:
Gas
Actuator Size: Φ50Stainless steel
Working Pressure: 0.05-0.95 Mpa
Temprature Range: -10 to +180 °C with PTFE seal
Product Name:
Flange connection Angle seat valve
Description:
The externally piloted
angle-seat valve is operated with a single or double-acting piston actuator. The actuator is available in two different materials, PA and PPS depending on the ambient temperature. The reliable self-adjusting packing gland provides high sealing integrity. High flow rates are attained with the gunmetal or cast stainless steel 2-way body. These maintenance-free and robust
valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 13-65
* High flow rate
* Long life cycle
* NC and NO universal actuators with modular universal accessory program up to control heads
* Deliverable with flow direction below or above seat
* Simple conversion of the control function
Technical data:
| Orifice | DN 13 to 65 |
| Body materials | Gunmetal, cast stainless steel 304,316L |
| Actuator material | PA or PPS |
| Seal material | PTFE (NBR, FKM, EPDM on request) |
| Medium | Water, alcohol, oils, fuel, hydraulic fluids, salt solution, alkali solutions, organic solvents, steam |
| Viscosity | max. 600 mm2/s |
| Packing gland (with silicone grease) | PTFE V-rings with spring compensation |
| Medium temperature1) | -10 to +180 °C with PTFE seal |
| Ambient temperature | |
| PA actuator1 > | -10 to +60 °C |
| PPS actuator1) Φ 40-80 | +5 to +140 °C |
| PPS actuator1) Φ100-125 | +5 to +90 °C, briefly up to +140 °C |
| Installation | As required, preferably with actuator in upright position |
| Control medium | Neutral gases, air |
| Max. pilot pressure | |
| Actuator size Φ40-80 | PA and PPS 10 bar |
| Actuator size Φ100 | PA 10 bar |
| Actuator sizeΦ100 | PPS 7 bar |
| Actuator size Φ125 | PA and PPS 7 bar |
| Port connection | G 3/8 to G 2 1/2 (NPT on request) |
Ordering Code:
| Type | Port Size | DN (mm) | Actuator Size(φ) | PA Actuator | PPS Actuator |
| Normally Closed Type (NC) | 3/8" | 13 | 40 | 142613 | 178612 |
| 1/2" | 13 | 40 | 178606 | 178605 |
| 1/2" | 13 | 50 | 178682 | 178681 |
| 3/4" | 20 | 50 | 178678 | 178677 |
| 3/4" | 20 | 63 | 178664 | 178663 |
| 1" | 25 | 63 | 178674 | 178667 |
| 1" | 25 | 80 | 186488 | 187844 |
| 1 1/4" | 32 | 80 | 178697 | 178696 |
| 1 1/2" | 40 | 80 | 178693 | 178692 |
| 1 1/2" | 40 | 125 | 187840 | – |
| 2" | 50 | 100 | 001140 | 001239 |
| 2" | 50 | 125 | 001601 | – |
| 2 1/2" | 65 | 125 | 001373 | 001703 |
| Normally Open Type (NO) | 3/8" | 13 | 40 | 142616 | 178609 |
| 1/2" | 13 | 40 | 178603 | 178604 |
| 1/3" | 13 | 50 | 178689 | 178688 |
| 3/4" | 20 | 50 | 178686 | 178685 |
| 1" | 25 | 50 | 178848 | 178847 |
| 1 1/4" | 32 | 63 | 178852 | 178851 |
| 1 1/2" | 40 | 63 | 178862 | 178861 |
| 2" | 50 | 63 | 001376 | 001709 |
| 3" | 50 | 80 | 001603 | 002164 |
| 2 1/2" | 65 | 80 | 001377 | 001710 |
